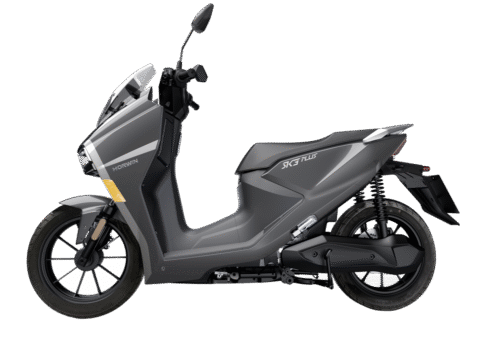

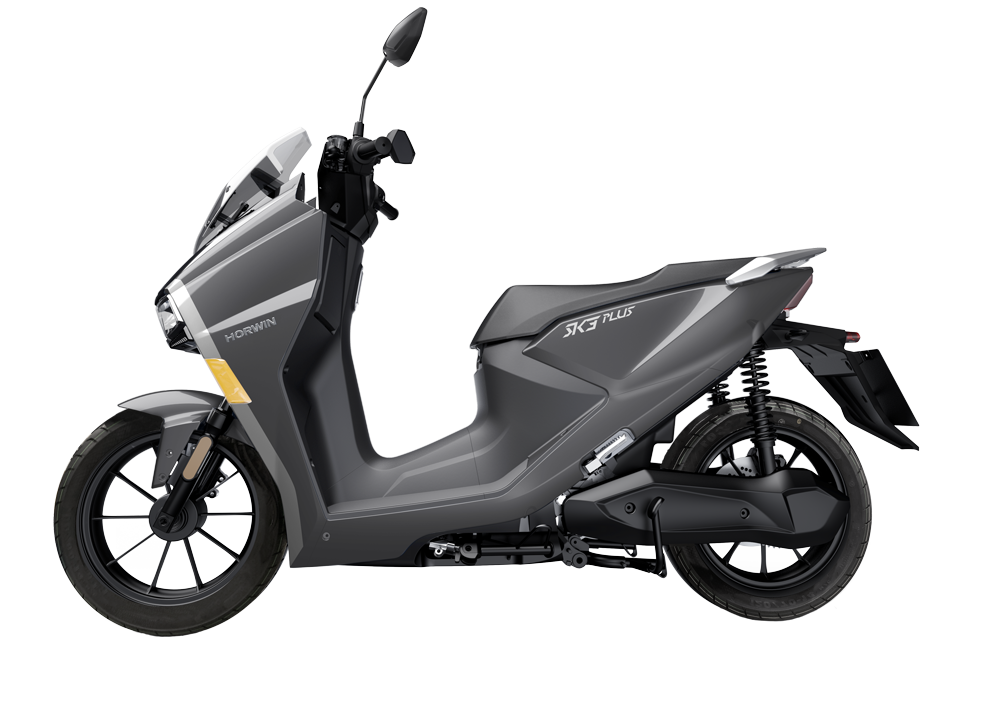

Horwin SK3 Plus

HORWIN SK3 PLUS – Specifications & Features

Performance

• Motor Type: Mid-mounted motor with FOC (Field-Oriented Control) system
• Peak Power: 8.64 kW
• Continuous Power: 4.5 kW
• Maximum Torque: 280 Nm
• Top Speed: Up to 100 km/h
• Acceleration: 0–50 km/h in approx. 4.4 s
• Maximum Climbing Angle: 22°

Battery & Range

• Battery Type: Lithium-ion
• Battery Capacity: 72 V 45 Ah (per battery)
• Battery Configuration: Dual battery setup (2 × 45 Ah)
• Range (dual battery): Up to 130 km (realistic conditions)
• Maximum Tested Range: Up to 260 km (under ideal urban conditions)
• Charging Time: Approx. 4.5 hours (using 10 A charger)

Dimensions & Weight

• Length: 1,993 mm
• Width: 742–750 mm
• Height: 1,136 mm
• Wheelbase: 1,360 mm
• Seat Height: 790 mm
• Ground Clearance: 135–155 mm
• Net Weight (without battery): 100 kg
• Maximum Load Capacity: 282 kg

Wheels & Brakes

• Front Tyre: 100/80-14
• Rear Tyre: 120/70-14
• Rims: Aluminium alloy
• Braking System: CBS (Combined Braking System)
• Optional Safety Features: ABS + TCS (market-specific)

Technology & Features

• Display: 7″ TFT screen with day/night mode
• Riding Modes: Eco, Plus, Sport, and Reverse (R mode)
• Keyless Go: Yes
• Drive Type: Belt drive (Gates carbon belt)
• Smart Functions:
  • Remote start
  • GPS tracking
  • Electronic fence
  • Anti-theft alarm
  • Riding record storage
• Connectivity: USB / Type-C charging port
• Lighting: Full LED (headlight, taillight, and indicators)

Additional Highlights

• Smooth and quiet belt drive system
• Enhanced energy management via FOC controller
• Large under-seat storage compartment
• Premium finish with aerodynamic body design
• Ideal for both city commuting and longer rides
