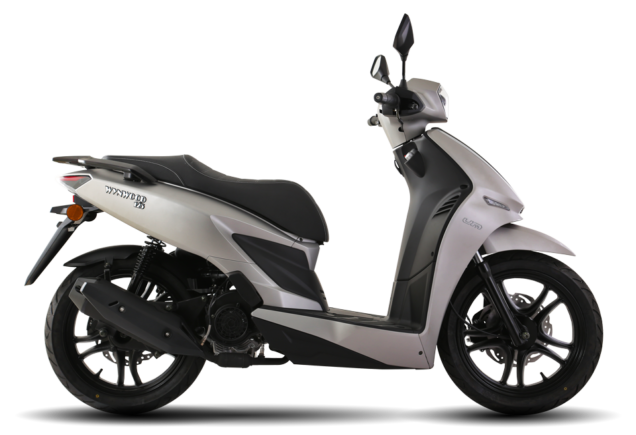

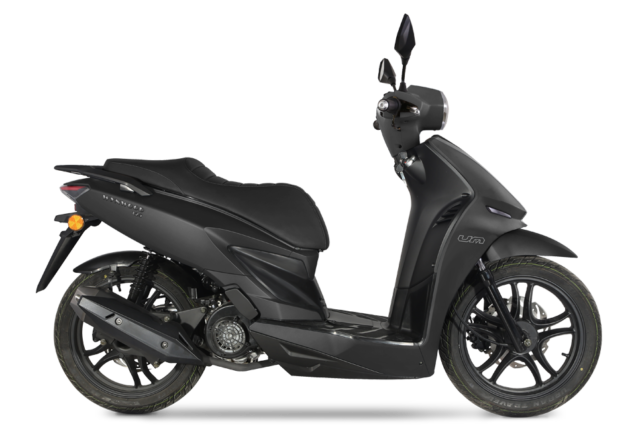

UM Wynwood 125cc

Technical specifications

Engine and transmisson

• Engine type: single cylinder, 4-stroke, SOHC
• Displacment: 125cc
• Valve: 2 valves
• Ignition: ECU
• Fuel delivery: EFI (bosch)
• Max power: 7.2Kw / 8000rpm
• Max torque: 8.8Nm / 6500rpm
• Compression ratio: 10.2:1
• Bore x Stroke: 54.2 x 57.8mm
• Starter system: electric starter
• Cooling system: air cooled

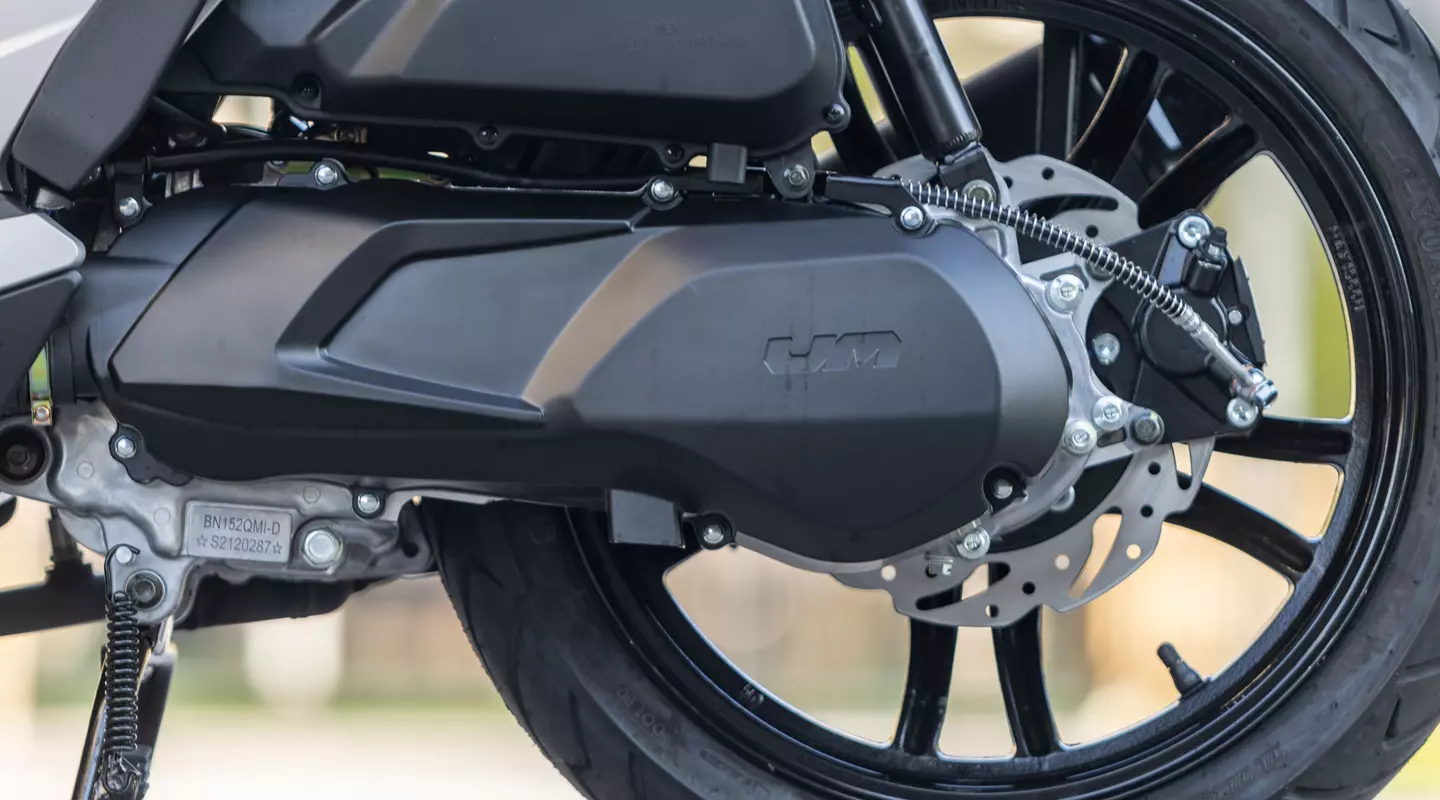

• Transmission type: automatic CVT
• Final drive: belt

Suspension brake and tyres

• Front suspension: universal hydraulic telescopic
• Rear suspension: double shock absorber
• Front tyre: 110/70-16
• Rear tyre: 110/70-16
• Brake system: CBS

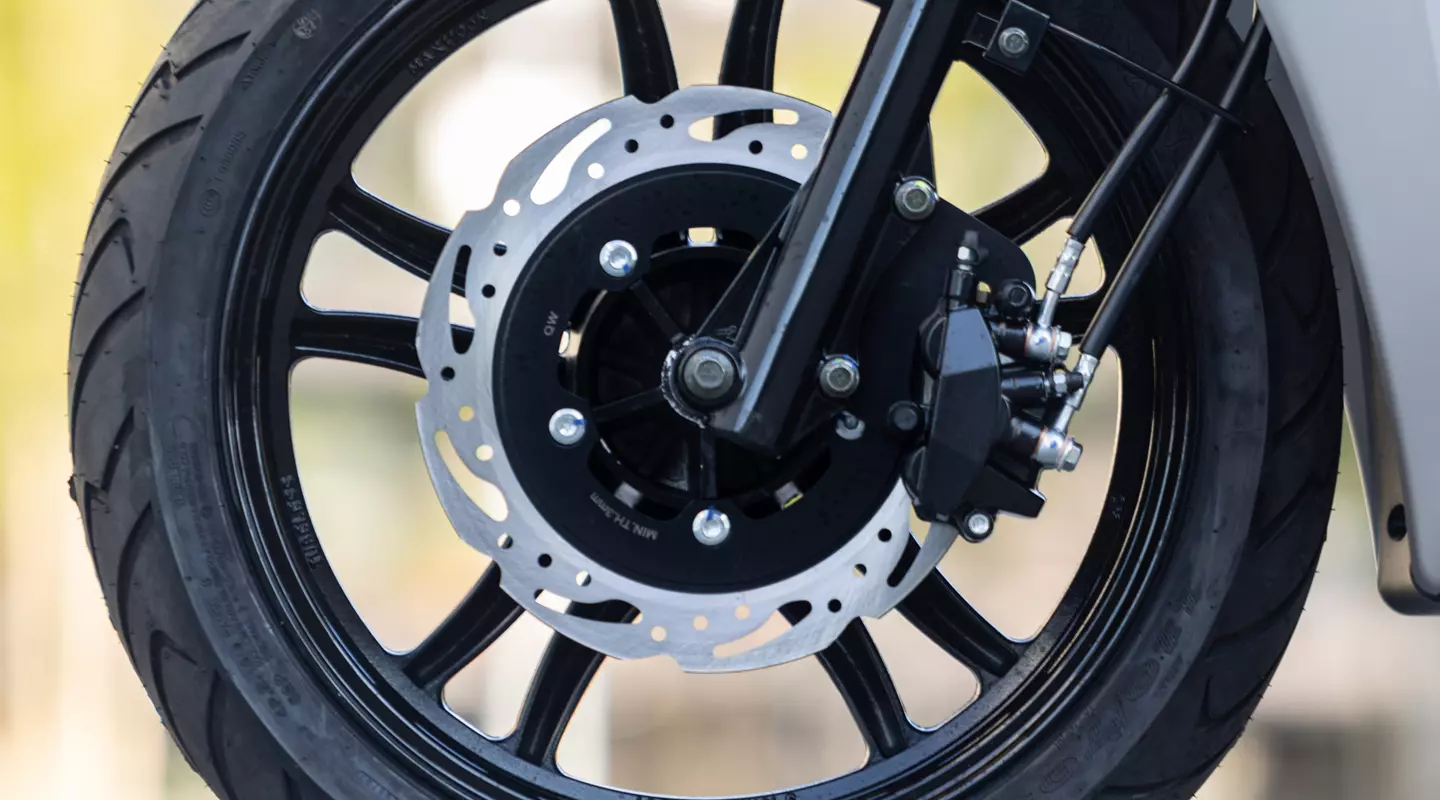

• Front brake: disc
• Rear brake: disc

Dimensions

• Weight: 120kg
• Seat height: 810mm
• Length: 1980mm
• Width: 685mm
• Ground clearance: 135mm
• Wheel base: 1350mm
• Fuel tank capacity: 7 litres
